Main use
1, glass, glass roof, aluminum, aluminum plate and
other curtain wall structural engineering structural adhesive seal.
2, a variety of other industrial and construction
purposes.
Construction Summary tips
1, silicone adhesive substrate surface to be bonded must
be clean, dry, no dust, no oil, no water exists.
2, to clean the substrate surface with a clean
non-velvet white cotton cloth and stained toluene or acetone solvent to clean
and dry, and make injection within one hour.
3, to ensure the glue sticky joints without gaps, and modify
before curing if needed.
4, on-site substrate adhesion and compatibility test
and customer satisfaction test must be made before use.
5, silicone sealant construction site requirements: environment
needs to clean, dry, well ventilated. Indoor temperature should not be lower
than 15 ℃, and should not be higher than 27 ℃, relative humidity should not
be less than 50% The thickness and width of the glue should meet the design
requirements, and the width should be at least 7mm, the thickness should be
6mm-12mm.
Application restrictions
Should not be used on the substrate surface which
extrudes oil, plasticizer or solvent substrate, or on sites which are continuous
flooding or year-round wet places, nor airtight places.
This product has not been tested or stated for medical
or medicinal purposes.
Safety Precautions
1, silicone sealant curing process will release low
molecular substances, the construction site should ensure ventilation, to avoid
excessive concentration of volatile material, which is discomfort (after curing
the cured body without any damage).
2, uncured silicone adhesive to avoid contact with
eyes, if contact with the eyes, please rinse with plenty of water, and to seek
help from the doctor.
3, when not cured, do not let children touch, if
accidentally being eaten, should seek help from the doctor.
Plastic tube packing
Shelf life: 18 months
Net capacity: 300ml
Packing quantity: 24pcs / box
Color: black, transparent
Aluminum
film sausage packing
Shelf
life: 18 months
Net
capacity: 592ml
Packing
quantity: 20pcs / box
Color:
black, transparent
Test report
Test report under GB/T14683-2003 B G F 20HM 《Silicone Construction Sealant》
Seriel No.
Item
Standard
Regulation
Test
Result (Value)
Assessment
1
Surface
/
Smooth
and uniform paste,No bubble,no crust,No particles
Qualified
2
Density
(g/cm^3)
±0.1
1.45
Qualified
3
Sag
(mm)
Vertical
≤3
0
Qualified
Horizontal
No
deformation
No
deformation
4
Tack-Free
Time (Hour)
≤3
0.5
Qualified
5
Extrudability
(ml/min)
≥80
158
Qualified
6
Elastic Recovery Rate (%)
≥80
85
Qualified
7
Tensile Modulus (Mpa)
23℃
>0.4 or >0.6
0.7
Qualified
-20℃
/
8
Cohesiveness
No descontruction
No descontruction
Qualified
9
Cohesiveness after UV irradiation
No descontruction
No descontruction
Qualified
10
Cohesiveness after cold-pull & hot press
No descontruction
No descontruction
Qualified
11
Fixed adhesion after immersion in water
No descontruction
No descontruction
Qualified
12
Mass loss rate
≤10
4
Qualified
Base material of testing: glass, anodized aluminium plate

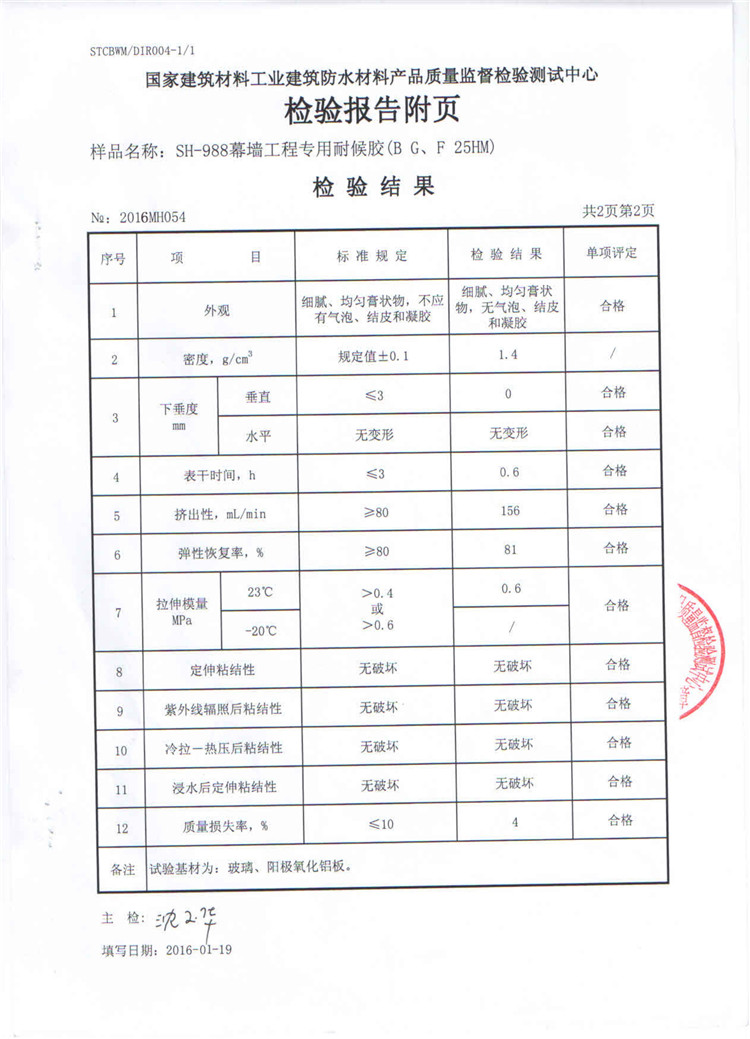

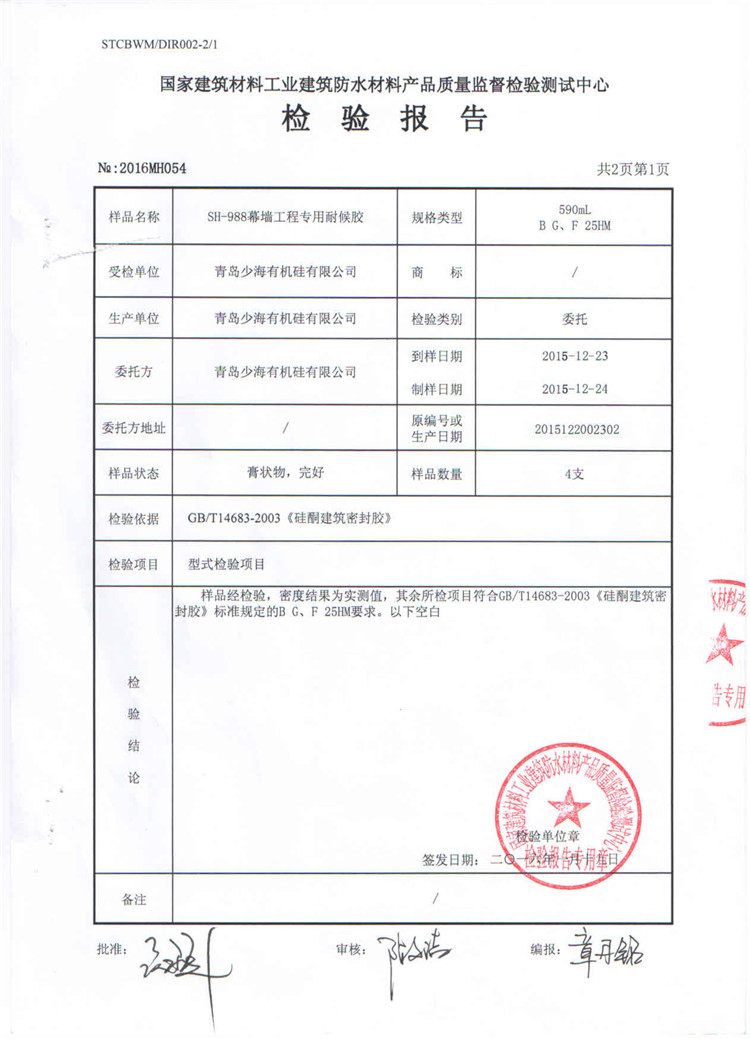

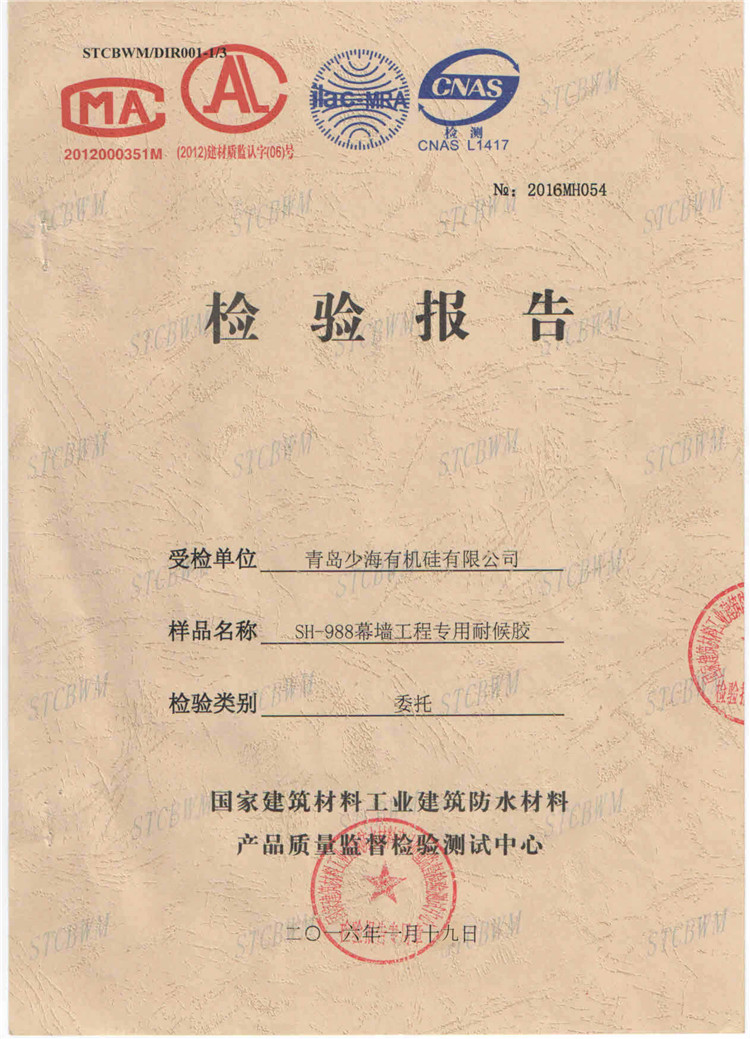

Original test report copy
